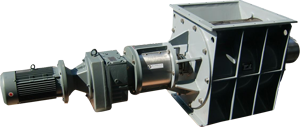

ROTARY AIRLOCK MCS

Taylor designed rotary airlock

Lightweight design. Taylor designed according to the customer’s requirements. Square or rectangular flanges. Used in dosage and pneumatic conveying of granular/powdered products. External bearings.

Options:

Frequency variation integrated in the electrical motor.
Thermal sensors and forced ventilation.
Mechanical variable speed drives.
Air inlets (Pneumatic conveying).
Inlet deflector (for granular products).
Spin sensor.

Technical data sheet

□ inlet/outlet: 300x300, 450x450, 500x500
Other measures according to customer’s requirements available.
Geometrical capacity: 30 - 200 L/rev

· Construction material

Body&lids: St-37, Aisi-304, Aisi-316, Aisi-316L, HARDOX
Rotor: St-37, Aisi-304, Aisi-316, HARDOX, special steels for heat treatments, etc…
Replaceable vanes: NBR, VITON, PTFE, SILICONE, EPDM, HARDOX, etc…
Rotor type: Open, closed end, replaceable vanes, rounded pockets, scraper vanes, reduced capacity, etc…
Bearings: External
Temperatures: -25º C - +450º C
Shaft sealings: Gland packing, sealing rings
Drive type: Direct, chain, elastic coupling
Pneumatic conveying: Positive or negative pressure
Allowable pressure: From -0,5 till +1,2 bar
Special treatments: PTFE, nickel plating, galvanized, special paint, mirror polish
Hardening treatments: Basic, PREMIUM

ATEX cert.:
· Internal: II 3G/D (Zona 22)
· External: II 3G/D (Zona 22)
