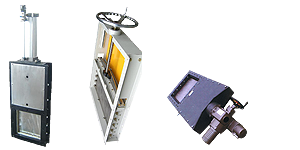

Square-rectangular flanges

Square-rectangular flanges
Heavy duty design, dust tight closing. Taylor design according to customer’s requirements.
  • Position detectors.
  • Simple effect cylinder.
  • Clutch (motorized drive).
Technical data sheet    Download data sheet Download data sheet

  • Standard measures: 150x150, 200x200, 250x250, 300x300, 350x350, 400x400, 450x450, 500x500, 600x600, 700x700, 800x800, 900x900, 1000x1000 mm
  • Measures according to customer’s requierements available
      · Construction material
  • Frame: St-37, Aisi-304, Aisi-316, HARDOX
  • Knife: St-37, Aisi-304, Aisi-316, HARDOX
  • Seal: EPDM, VITON, PTFE, Brass
  • Temperatures: -25º C - +350º C
  • Knife sealing: Gland packing
  • Actuator: Manual, pneumatic cylinder, hidraulic cylinder, motorized
  • Admissible pressure: From -0,5 till +0,25 bar
  • Special treatments: Painting for corrosive atmospheres
  • Hardening treatment: Hard chromium

  • Atex ATEX cert.:
       · Internal: II 3G/D (Zone 22)
       · External: II 3G/D (Zone 22)
