Tight closing for fluids.
Category: Products

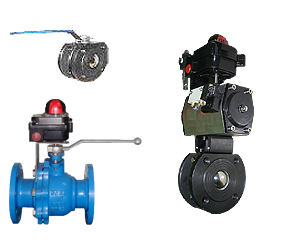

BALL VALVES (VB)
Options:
- Position detectors.
Technical data sheet
Download data sheet
Download data sheet
- Ø inlet/outlet: 50, 65, 80, 100, 125, 150, 200
- Constructive type: WAFER (between flanges), DIN (body with 2 components)
- Drill norm: EN 1092-1 (PN10, PN16)
- · Construction material
- Body: DIN 1.0619 (WCB), CF8 (Aisi-304), CF8M (Aisi-316)
- Ball: DIN 1.0619 (WCB), CF8 (Aisi-304), CF8M (Aisi-316)
- Seal: PTFE
- Temperatures: -25ºC - +180ºC
- Shaft sealing: Bushings
- Actuactor: Manual with regulation, pneumatic, motorized
- Admisible pressure: From -0,5 till +10 bar
- Tightness: EN 12266 and DIN 3230 part 3.
- Hardening treatments: Hard chromium
ATEX cert.:
· Internal: II 3G/D (Zone 22)
· External: II 3G/D (Zone 22)
